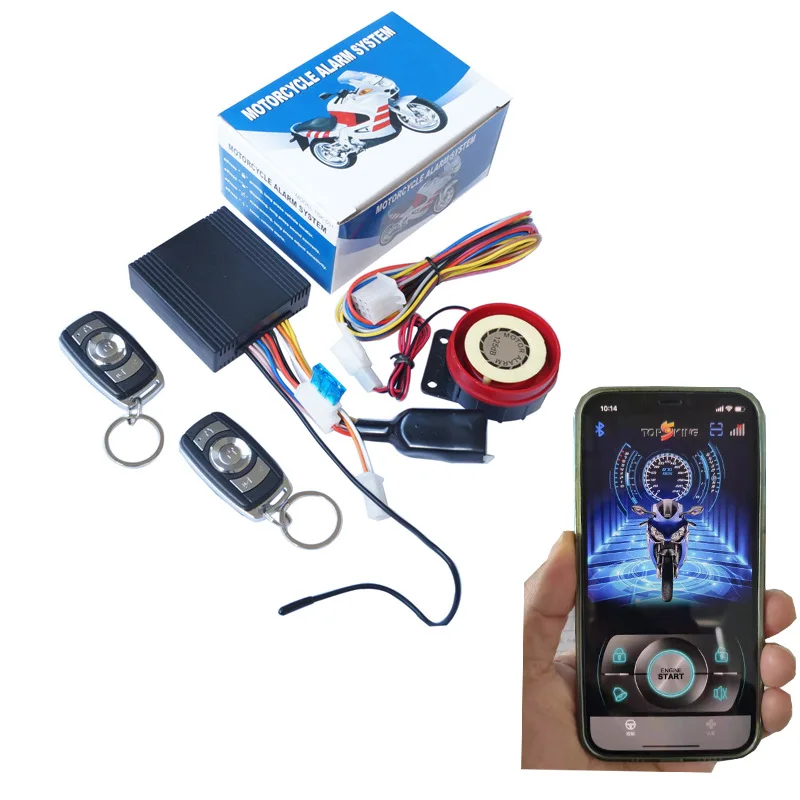

12V Universal Motorcycle Alarm System Remote Control Engine Start 125dB

Material: ABS Working Voltage:DC 12V(9V-14V) Static Current:<6mA Working Temperature:-20℃~+80℃ Remote Control working Voltage:DC6V/9V/12V Remote Control Frequency Range:315MHz Or 433MHz Fitment: Fit for most motorcycles with 12V battery Packing size: about 19*15*4.5cm/7.48*5.9*1.77Host size: about 6.5*2.3*7cm/2.55*0.9*2.75 Horn sound level: 125dB Red/black: positive power supply/negative Orange: anode cable of electric door lock Gray/pink: flameout cable Blue: positive start cable Yellow: left and right turn signal Compatible Motorcycle Models: Suzuki, Honda, Yamaha, Kawasaki, Harley Davidson and all Other Motorcycles Note: This kind of wiring way is generally suitable for the motorcycle with AC ignition. The different motorcycle has different ignition mode and the wiring way is possibly different. This electronic Anti-theft Alarm with remote controller can let your motorbike keep away from thieves Host Device Made Of Waterproof Silicone,With Better Waterproofing, Ultra-low Power Consumption, Prevents Loss Of Battery Current. Working voltage:DC 12V (9V-14V ); Alarm Loudness:125dB; More technical parameters in product Manual description. Note: 1. If the DC ignition mode motorcycle is installed with AC ignition mode alarm, you need to purchase a relay, such as the B wiring diagram. 2. This product defaults to AC mode. Please make sure that the motorcycle is AC or DC when installing.
