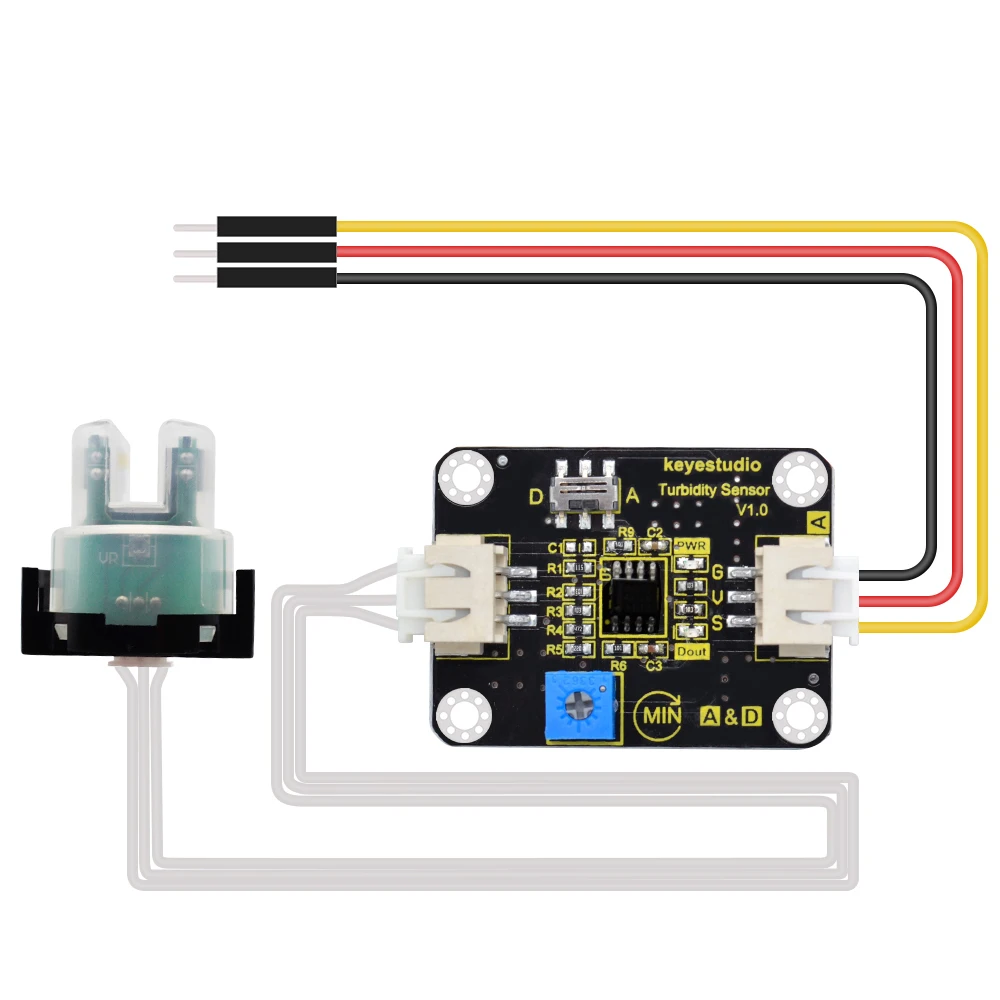

Turbidity Sensor Module - Water Quality Monitor Particles Sensor -Turbidity Sensor Level Tester Water Quality Monitoring Sewage Turbidity Value Detection Module TSW-20M

Specification: Model: TSW-20M Working voltage: DC 5V Working current: 11mA Detection range: 0%~3.5%(0-4550NTU) Wiring method: V: DC +5V, G: power supply -, A: analog output, D: level output Operating temperature: 30~70°C, 35-95% RH Storage temperature: -10~80°C, 35-95% RH Weight: Approx. Only the transparent part can be placed in the water. 2. Be careful not to reversely connect the power supply, or the sensor will be damaged. CURRENT CONVERT: This module converts the current of the sensor to module output voltage. The lower the output voltage is, the higher the turbidity value. TURBIDITY SENSOR: This turbidity sensor adopts optical principle to detect the turbidity of liquid solution. ACCURATE MEASUREMENT: The module adopt high quality electronic components, ensuring the accuracy of turbidity measurement.
